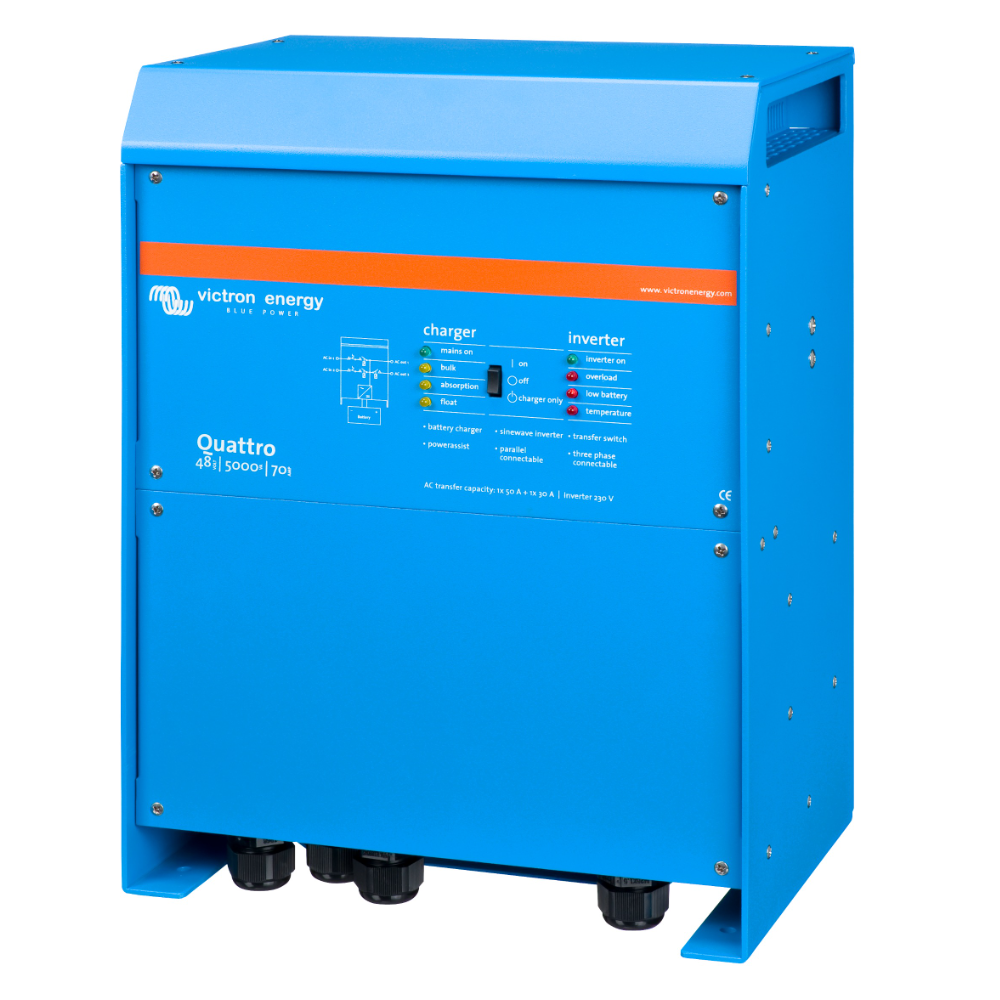

The Quattro 48/5000/70-100/100 is a powerful 48-Volt 5000-Watt pure sine wave inverter with an adaptive 70A battery charger and two 100A AC inputs. The inverter’s output is 120V AC.
Order Requirements
Victron products ship from Sacramento, CA. Contact us for local pick-ups.
Looking for a Better Deal?
Complete Victron systems are available. Please call us to inquire.
The Quattro 48/5000/70-100/100 is a powerful 48-Volt 5000-Watt pure sine wave inverter with an adaptive 70A battery charger and two 100A AC inputs. The inverter’s output is 120V AC.
Quattro and Multiplus inverters/chargers share many great features. One difference is that the Quattro has two independent AC inputs and a built-in transfer switch configurable with intelligent rules. An example of a dual AC source could be grid power and a generator, or two generators, diesel and gas.
Here is a table with all 48V Quattro inverter models:
| Part No. | Description | DC Voltage | AC Voltage | Nominal Power | Battery Charger |
| QUA483021100 | Quattro 48/3000/35-50/50 120V VE.Bus | 48V | 120V | 3,000W | 35A |
| QUA485021100 | Quattro 48/5000/70-100/100 120V VE.Bus | 48V | 120V | 5,000W | 70A |
| QUA483100100 | Quattro 48/10000/140-100/100 120V VE.Bus | 48V | 120V | 10,000W | 140A |
Quattro inverters have two AC outputs. The main output features a 20-millisecond no-break transfer switch allowing computers and electronic equipment to operate without interruption in the event the grid or the generator disconnect. By default, the second AC output runs only when an AC input is available; it is intended for non-critical loads that should not discharge the batteries, for example, a water heater. However, the auxiliary AC output can be configured for many other scenarios.
Stack two Quattro inverters to build your 240V split phase system, or configure three inverters for a 3-phase system. You can have up to six inverters in parallel per phase, significantly increasing the system’s capacity.
The main output of the Quattro inverters uses advanced adaptive charge software with a fine-tuned three-stage automatic charging; it has a fourth stage for long periods of float charging.
The Quattro allows you to set a maximum input current (AC) from the generator or shore power; the charger will then prioritize the loads (AC output) and use the remaining energy to charge your batteries.
Quattro inverters are also equipped with a PowerAssit feature that will take energy from the batteries to assist the generator when its capacity is not enough to run the loads during high demand (peak) periods; once the loads are back to normal, the charger will use the generators excess energy to recharge the batteries.
The Quattro will operate out of the box without any additional configuration. The factory settings can be modified using the inverter’s DIP switches. VE.Net can be used instead of the DIP switches and the VE.Bus software is available for more sophisticated settings and features.
