Victron Energy GX LTE 4G Mobile Modem

Victron’s GX LTE 4G is a cellular modem that supports 2G, 3G, and 4G networks. It connects your Victron power system to the Victron Remote Management (VRM) portal. A typical application is pairing the GX LTE 4G to a Cerbo GX to monitor system performance on mobile applications such as RVs and travel vans.

Order Requirements

Victron products ship from Sacramento, CA. Contact us for local pick-ups.

Looking for a Better Deal?

Complete Victron systems are available. Please call us to inquire.

GX LTE 4G Manual

Download

User manual and network information for Victron's GX LTE 4G mobile modem.

GX LTE 4G Dimensions

Download

Dimensions and diagram of Victron's GX LTE 4G mobile modem.

Victron Energy Limited Warranty

Download

Limited warranty policy for Victron power products

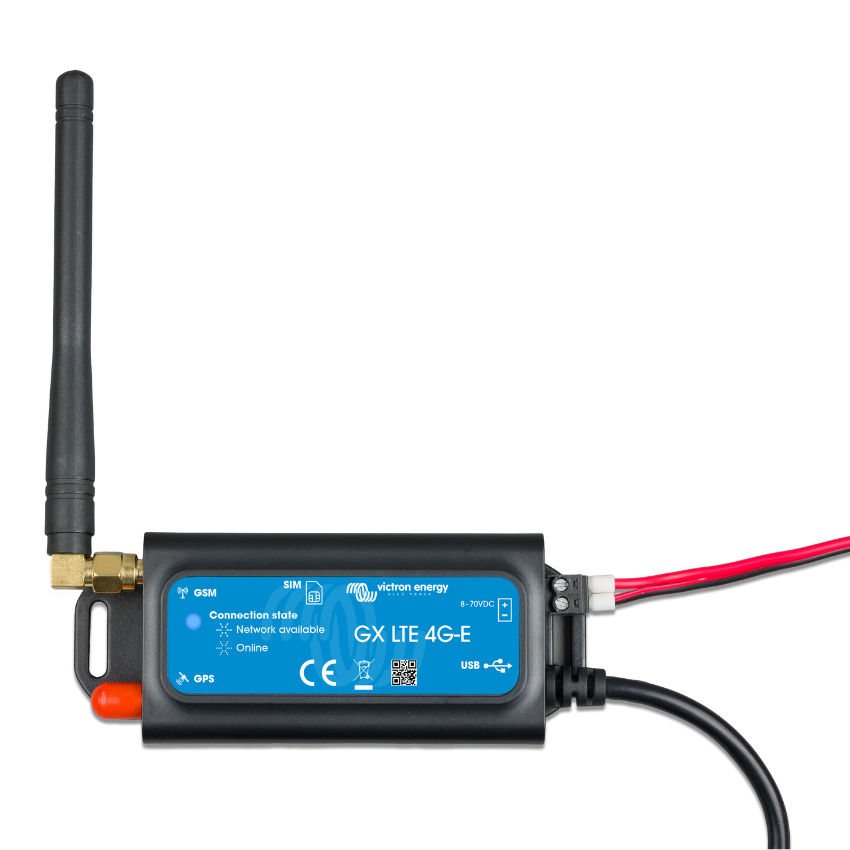

Victron’s GX LTE 4G is a cellular modem that supports 2G, 3G, and 4G networks. It connects your Victron power system to the Victron Remote Management (VRM) portal. A typical application is pairing the GX LTE 4G to a Cerbo GX to monitor system performance on mobile applications such as RVs and travel vans.

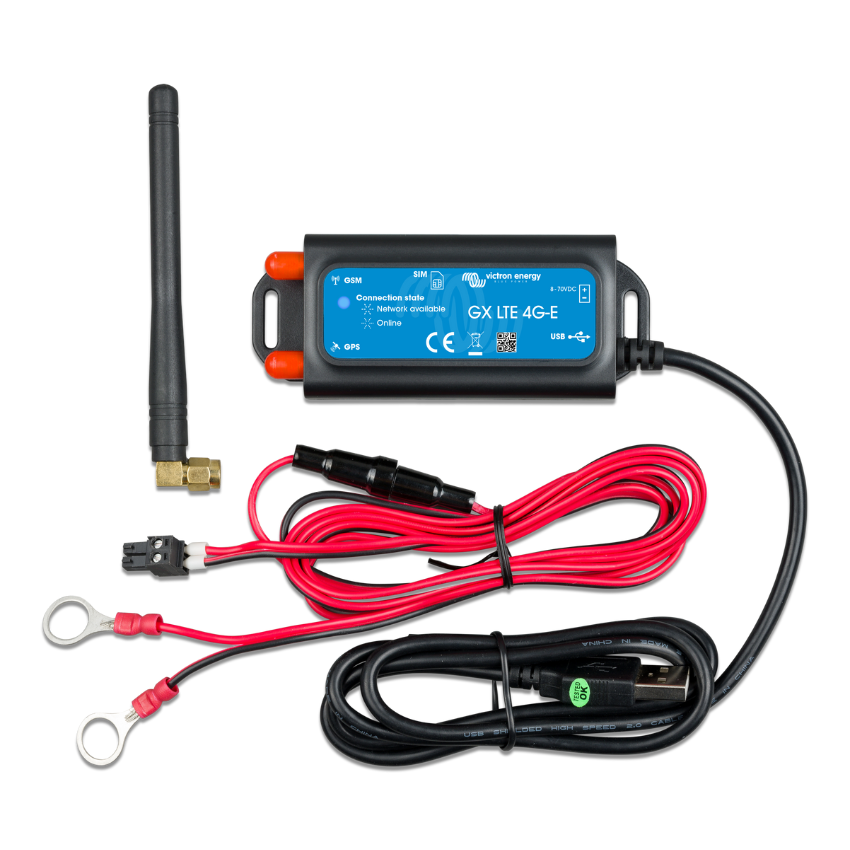

An indoor LTE antenna is included with the GX LTE. The optional Outdoor 4G GSM Antenna (sold separately) will increase the range, part number GSM900100400. The GX LTE has an integrated USB cable for quick connection to GX devices and a DC power cable with an inline fuse and terminal block.

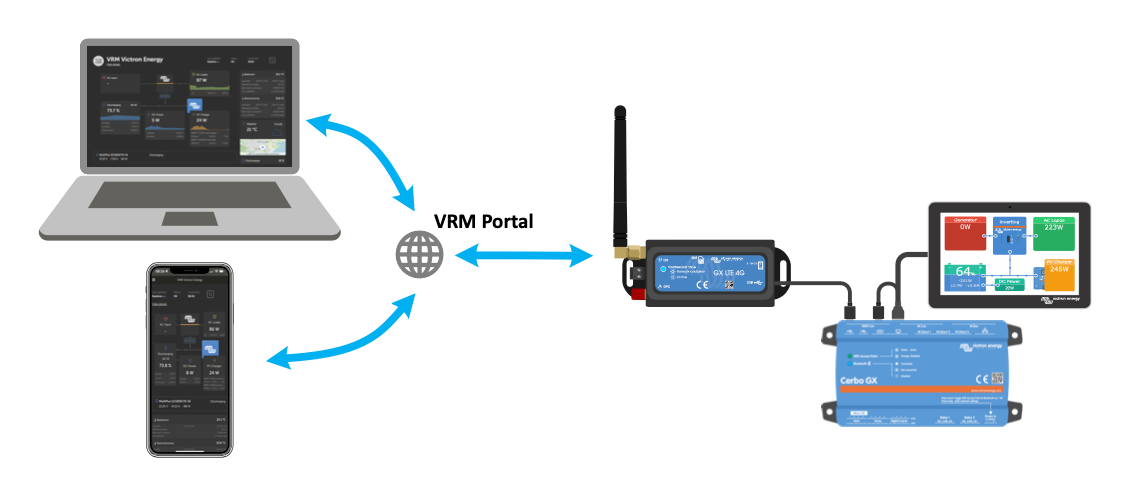

Victron Energy GX LTE 4G Diagram
Victron Energy GX LTE 4G Connectivity Diagram

The GX LTE 4G-A part number is for cellular networks in North America. The GX LTE 4G-E is for Europe, the Middle East, Africa, Korea, and Thailand. Model GX LTE 4G-SA is for Australia, New Zealand, and South America. A Mini-SIM card is required in all countries with service.

The GX LTE features a built-in GPS receiver to track the system’s geographical location or create a Geo Fence in the VRM portal. These features require the Active GPS Antenna part number GSM900200100.
